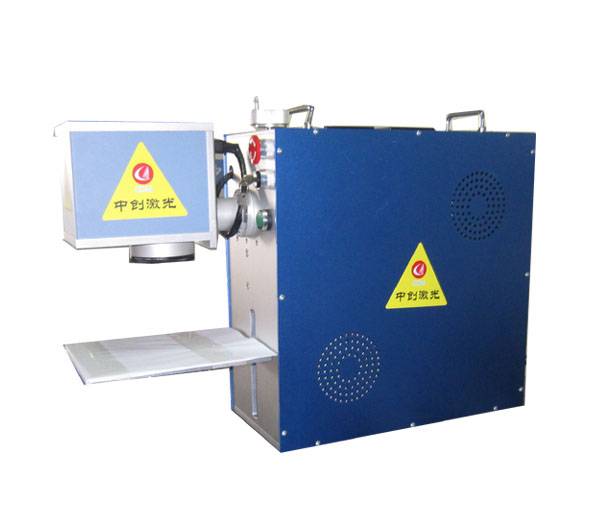

Diode Pump Laser Marker - CLM-10W Specifications:CLM-10W

Equipment Features:

1,Adopting integrated design of whole structure.Full sealed laser optic system ,don’t need to adjust.Can be directly used when it connect with source and computer.
2, High-precision, high-speed marking Performance.
3,Easy operation,Powerful software,easy to edit .
4,Advanced laser technology, low running cost and maintenance cost.
5,Small size,easy to carry,apply to work in the narrow environment.
6, Can be transported by express, Save delivery time.

Technical Parameters


Laser power
10W(USA laser source)

Laser Wavelengths
1064nm

Beam quality
M2<1.5

Laser Repetition Rate
20-100KHZ
Marking speed
≤6000mm/s

Min.width
0.01mm

Working area
70mmX70mm

100mmX100mm
Min. characters
0.15mm

Orientation precision
0.001mm

Average power consumption
500W

Power
AC220V±10%/50Hz/5A

Cooling style
Air cooling

Laser tube lifetime
50000Hours

Packing Size :
500X400X560mm

N.W
42Kg

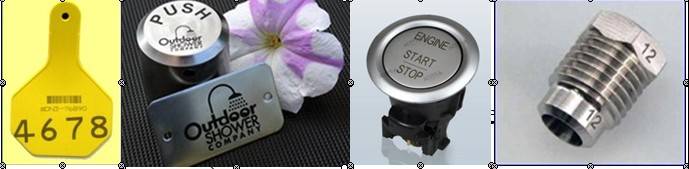

Applied industry and materials

Materials:Any metal materials,engineering plastic,plating coating materials,spray material,plastic,rubber,epoxy resin,ceramic,and other materials.
Industry: electronic components,integra ted circuits(IC),electrical applicances,communication products,sanitary ware,tools,accessories,knives,glasses,clocks and watches,jewellery,automobile accessories,bags decorated clasps,cookers,stainless steel products and other undustries.
